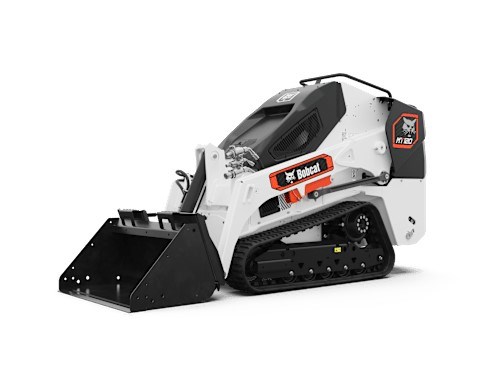

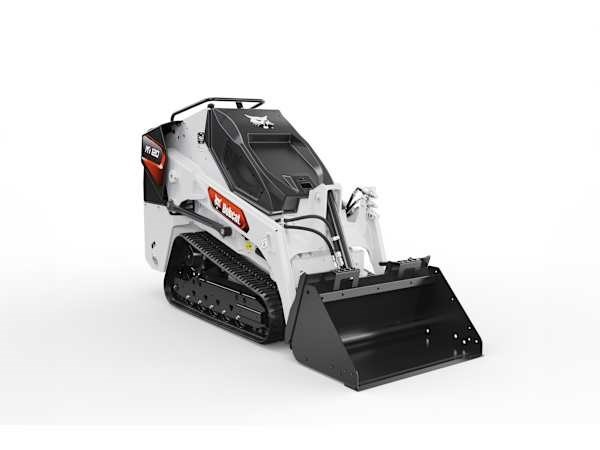

Bobcat MT120 - Mini Track Loader

Don’t be misled by their small size. Bobcat mini track loaders pack a lot of power into a small, maneuverable package. Not much wider than your average wheelbarrow, the MT120 can take you wherever the serious work is. Its small footprint and exceptional maneuverability provides a perfect solution for tight-fitting jobsites where hand tools are the other option.

The MT120 offers a low ground pressure of just 4.3 psi. When equipped with optional wide tracks, the MT120’s ground pressure is just 3.8 psi. You can achieve optimal flotation for easier work on soft ground. Travel over established surfaces with minimal ground disturbance. Spend less time and money repairing surface damages that other machines leave behind.

The MT120 offers significant rated operating capacity (1,200 pounds) and breakout force for peak productivity. If you need an ultra compact loader that can lift more, carry more, and do more with every cycle, the MT120 is your ideal machine.

With 88 inches of lift height the MT120 features best-in class lift height and reach performance. Reach of 22 inches at maximum height gives you extra flexibility when loading trucks, trailers or placing materials in hard-to-reach areas. With the MT120, you can not only lift more weight, you can lift it higher.

Designed with a vertical lift path and a highly productive power-to-weight ratio, the MT120 is a well-balanced machine with a small footprint.

You’ll experience greater performance with the MT120. Powered by a high-torque, 1.2-liter non-DPF engine, the MT120 delivers plenty of muscle to get the job done. A new, direct-drive system also eliminates belts for less maintenance.

Multi-bar lug tracks combine increased traction with low vibration and excellent operator comfort. These flexible, cut-resistant and anti-gouge tracks are structurally designed to match the needs of your Bobcat mini track loader. Internal steel cables provide strength for even traction distribution and consistent length. Steel embeds guide and support the track when engaging the drive sprocket, idlers and rollers.

A top travel speed of 4.7 mph helps speed up material handling tasks or move quickly from point to point on the jobsite.

The MT120 features smooth, responsive and precise pilot drive controls. Operate this mini workhorse in tight confines with confidence. Those new to mini loaders can quickly become accustomed to the operator-friendly controls and quickly increase their productivity.

The MT120 features a powerful engine, optimum machine balance, smooth and precise pilot controls and fast travel speeds - all which work together to deliver fast cycle times.

The MT120 is designed to deliver optimum machine balance so that operators can confidently and efficiently tackle tough jobs.

Counterweights come standard on the MT120 to increase lifting performance on tough jobs.

Smooth and quick Bobcat lift cylinders are cushioned at the fully lowered position. The tilt cylinders are also cushioned at the full dump and rollback positions. This reduces noise and increases comfort during operation.

The electric cooling fan rotates at minimal speeds needed to achieve efficient, optimal cooling, and it only runs at full speed when necessary.

The Bobcat mini track loader offers an ideal combination of an easy-to-use machine in a less-intimidating size. This makes it a great match for new operators.

The MT120’s pilot drive controls enable consistently smooth, fast, precise movement in response to operator input. Additionally, auxiliary hydraulic on the workgroup handle adds extra convenience and simplicity for attachment operation. The operator doesn't have to take his hand off the joystick to engage and operate auxiliary hydraulic attachments. This style of controls also isolates the operator from engine vibration and hydraulic feedback to reduce fatigue.

The color LCD display provides simple machine interaction and troubleshooting. Use it to keep an eye on your mini track loader’s performance and service needs. It enables a password-protected keyless start that makes your machine more secure while eliminating the inconvenience of lost keys.

The integrated ride-on platform provides a superior vantage point to the bucket cutting edge or attachment, as well as to the sides of the machine. Operators can confidently operate at a natural position with less craning and straining to see the work.

Meticulously designed and thoroughly tested to absorb the vibrations and bumps of the job, the integrated suspension platform provides an ideal surface for operators to stand firm and minimize fatigue while tackling challenging work.

The comfortable operator platform gives operators an open view to their work. Cushioned hip pads add comfort, yet their robust construction stands up to tough jobsite conditions.

The machine’s design and materials transmit less heat to the operator area, so operators can stay more comfortable throughout the day.

When operators are comfortable, they can work more quickly and with greater confidence. Ergonomic grab handles provide stabilization when operating in a variety of ground conditions.

The optional rubber mat dampens vibration to increase operator comfort. Drainage holes allow mud and water to pass through.

Convenience and comfort are key elements of the MT120 with two operator cup holders, a handy storage compartment and a 12-volt power port within easy reach for additional convenience every workday.

Continuous auxiliary hydraulic flow (detent) can be activated only when the operator depresses the continuous flow shutoff pedal – located on the ride-on platform. When operators leave the platform, releasing the pedal, continuous hydraulic flow to the attachment is shut off and attachment motion stops.

Gain easy, tool-free access to routine maintenance areas by lifting the hood. Quickly check and fill coolant, fuel, oil and hydraulic fluid levels. Preventive maintenance becomes simple, and you'll be back on the job faster.

The maintenance-free bushings eliminate several grease points, allowing you to reduce the time you spend on daily maintenance.

The easy-to-access grease cylinder allows for quick, simple track tensioning.

With durable construction, innovative design and numerous no- and low-maintenance features, the Bobcat MT120 offers the lowest cost of ownership in the industry. Get proven performance from the Bobcat MT120, a premium product with ownership costs that are less than half other mini track loaders.

This optional kit adds an engine angle sensor to the MT120 to monitor the engine's position. If the engine angle exceeds recommended limits, the system will notify the operator and may shut down the engine. A service code is displayed on the screen when these limits are exceeded. The engine will automatically shut down upon reaching the maximum limit.

Do more than dig: your mini track loader can complete a long list of jobs. Equip your machine with 53 available Bobcat attachments. Use your mini track loader for trenching, digging, carrying materials, demolition, site preparation, snow removal, utility installation, sweeping and stump grinding. Purchase mini-track loader attachments that you use everyday and rent others for special projects or one-time tasks.

Two attachment interface choices help you make quick work of grading, backfilling, digging holes, hauling and loading materials, and other tasks. Bobcat Company developed the exclusive Bob-Tach® attachment mounting system more than 35 years ago. The Bob-Tach system uses an over-center latch mechanism and wear compensating design to make proper attachment-to-carrier fitment from the first exchange to the last. MT120 loaders can also be equipped with a common industry interface. Combining over-center latches with a pin-on design provides operators with another option to exchange attachments as jobs change.

Bobcat mini track loaders can share select attachments with other Bobcat equipment, giving you the most versatility and productivity for your dollar.

This powerful, yet compact mini loader is just under 36 inches wide for greater access to jobsites and high performance in tight work areas.

Two different track sizes provide your preferred combination of performance and ground pressure. The standard 9-inch tracks keep your machine’s width to just under 36 inches. Depending on the size of your attachment, you can easily slip through doorways and fence gates. A ground pressure of 4.3 psi provides good protection for most turf and finished surfaces. With optional 11-inch wide tracks, the width increases to just under 44 inches, and ground pressure is only 3.9 psi.

The body’s exterior panels are made from high-strength steel, ensuring maximum strength and durability while providing excellent component protection.

Permanently lubricated (sealed) rollers and idlers reduce undercarriage maintenance and leave more time for your jobsite tasks. The MT120 also features maintenance-free bushings in the work group, which also support increased uptime.

With extended fluid service intervals, permanently lubricated rollers and idlers, and maintenance-free bushings, the MT120 is the clear choice for those who demand high performance and greater uptime with the lowest cost of ownership.

The undercarriage is designed to maximize track and roller contact to extend the life of both critical components. The surfaces of rollers and idlers are heat treated to minimize the wear of typical use and further extend the life of your track system.
