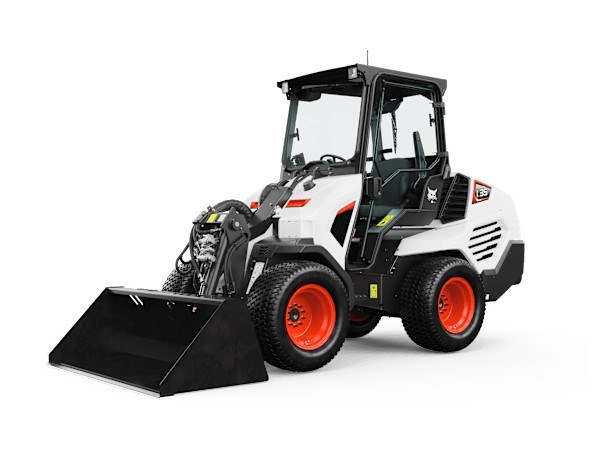

Bobcat L35 - Small Articulated Loader

With 114.8 inches of lift height (flat bottom bucket), the Bobcat L35 gives you impressive height and reach for work up high, such as clearing hoppers, trucks and fences.

At just 54 inches wide, the small yet mighty L35 can access and be operated on small jobsites where larger machines can't go.

A rated operating capacity of 1,902 pounds provides heavy-lifting performance in a small footprint. You’ll be able to take full advantage of the bucket capacity and bring excellent lifting performance to a wide range of jobsites.

With 1,814 kg of lift breakout force and 2,087 kg tilt breakout, there’s no stopping you when working in tough ground conditions or digging into dense piles of material.

Adapt your performance to the job and spend less time traveling across a jobsite or between jobs. Move faster – and get the job done sooner – with 2-Speed travel. This time-saving feature boosts your top travel speed to as high as 16 mph. A convenient button on the L35 joystick enables easy, on-the-fly speed mode changes without having to stop and change your operating range.

Get high performance from a small machine, with a 57-hp (1.8 L) turbo-charged, Tier 4 engine that generates generous torque at low rpms and swift travel speeds.

The L35’s high-flow capabilities lead the industry. When equipped with optional high-flow hydraulics, the L35 offers industry-leading 25.3 gpm auxiliary flow for more productivity with Bobcat attachments, including snowblowers, soil conditioners and brush cutters.

The L35 is a highly versatile machine, equipped to power a variety of attachments with standard-flow auxiliary hydraulics of 18 gpm.

The factory installed option auto idle can help you save fuel and reduce noise during operation. When the L35 stops moving for several seconds, the engine idles automatically. When you start to work again, the engine returns to its previously set throttle position.

The automatic ride control option acts as a suspension for the L35 lift arm, helping to offset terrain irregularities for a smoother and more comfortable ride while carrying a load. There’s less chance of spilling transported material, helping you be as efficient as possible with every work cycle.

The L35 lift arm extends to a lift height of 114.8 inches. The telescoping lift arm includes a dual-parallel leveling system that keeps the load level as you move the bucket. The telescopic cylinder is synchronized with a hydraulic leveling link that delivers smooth functionality, leveling assist, reduced bucket spillage and fast cycle times.

The small articulated loader delivers precise maneuverability, thanks to the articulation joint design that enables the rear tires of the loader to match the path of the front tires. This results in a highly nimble machine that navigates around obstacles with ease, leaves minimal surface wear and works well in enclosed yards or other small work zones.

With its tight-turning steering radius and light overall footprint, the Bobcat L35 limits cuts or tears in the turf when turning or hauling a load. This leads to fewer surface repairs after the job is complete.

The standard integrated counterweight provides optimal lift capacity and extra protection for the machine’s composite covers and cooling package.

Optional add-on rear counterweights further increase lift capacity and productivity. The counterweights follow the contours of the loader to maintain ground clearance and a slim profile.

Small articulated loaders are a highly transportable and a relatively lightweight solution that enables you to quickly get your machine to the job and get to work.

The Bobcat L35 features an efficient cooling system for optimal operation and maximum component protection. Side and front inlets bring cool air into the engine compartment and out the screened rear exit. The rear radiator screen is removable for easy cleanout, and its corrugated steel construction provides excellent durability. A separate temperature-controlled hydraulic oil cooler operates as needed to ensure quieter operation as well.

The Bobcat small articulated loader features series-connected drive motors that allow the machine to keep moving in rough or uneven terrain, even if one or more wheels lose traction.

Automatic Traction Mode
When operating L35, the machine automatically enables one of two traction modes based on operation.

High Traction: When driving straight, the L35 automatically provides all-wheel traction for optimal control and mobility, especially over rough or slippery terrain.

Turf Safe: While actively steering, turf-safe mode keeps the wheels from scrubbing on the ground, minimizing ground disturbance.

Optional Traction Assist Switch
Similar to a differential lock, traction assist enables you to momentarily override the automatic modes. With a convenient button located on the joystick, you can enable all wheels to travel through adverse conditions such as mud or slippery ground.

The Bobcat L35 features standard Tilt Float and Lift-Arm Float for optimal attachment operations. Tilt Float and Lift-Arm Arm float allow the attachment to follow the ground contour with optimal down pressure. Operators experience better attachment performance and improved steering during attachment operations. With optimal downward pressure, you’ll also create less wear on your attachments.

The steering wheel and joystick are within easy reach.  Intuitive fingertip auxiliary and telescopic controls facilitate quick, simple, comfortable and productive operations.  Operators don't have to take their hands off the joystick to activate mechanical switches when operating attachments, which make for efficient and productive operation. From the joystick, operators also can engage variable flow control, similar to our skid-steer and compact track loaders.

Compared to other small articulated loaders, the Bobcat L35 interior is engineered with more usable space for the operator, with special attention paid to cab height, foot room, and room between the seat and the steering wheel. A USB port keeps your devices charged and ready to use, while cab storage gives you space for personal items, gloves, cell phone and other essentials. The cab headliner dampens sound and helps to keep your cab temperature more consistent. Heat and air conditioning keep you working comfortably in extreme heat and frigid cold. The 3-point seatbelt provides security for operators.

A simple twin-pedal design enables quick and easy direction changes: One pedal moves you forward, and the other moves you in reverse. It’s a style of travel control that is easy for operators to master, making the small articulated loader a great choice for seasonal employees or rental customers. It’s also convenient and simple for operators who need to understand controls for multiple machines.

Comfortable to use and simple to operate, the L35 joystick provides an experience that will be familiar to users of other Bobcat machines, like compact wheel loaders and telehandlers. There’s less need to take your hands away from the joystick to find buttons and switches or operate certain features. The Bobcat joystick gives you quick, responsive control of the lift arm and fingertip access to numerous adjustments and machine features such as:

• On-the-fly traction assist (similar to differential lock)
• 2-Speed travel switch
• Auxiliary hydraulics
• Tilt float
• Lift-arm float

Ergonomic support for your arms helps you stay comfortable and avoid fatigue during long hours of work.

The heated seat helps to keep your body warm and comfortable while working on frigid days.

Independent front and rear wipers – and rear defrost – provide for better visibility in wet, humid or snowy weather. The rear defrost quickly heats the rear window to get a clear view when frost hits the jobsite.

A optional Bluetooth-enabled radio gives you more on-the-job news, podcasts, music and other entertainment.

The 4.3-inch LCD screen displays critical machine information and warnings to improve overall productivity. Keyless start with password protection helps you avoid lost time due to missing keys. Keyed option available.

The side and rear windows open to provide abundant airflow for a comfortable operator experience.

The entry step and grab handle assist operators as they enter or exit the operator station or cab.

The floormat, standard on cabbed models, dampens vibrations and helps you keep the cab clean.

Rubber bumpers help to protect the cab’s corners while the loader articulates.

The optional rear guard provides additional protection for the cooling package.

A door sensor helps ensure the door is securely latched when operating the loader.

When you purchase a Bobcat L35 or any other Bobcat machine, you can be confident that you're backed by a knowledgeable dealer network that's committed to keeping you productive.

Spend less time maintaining your machine and more time putting it to work. Extended service intervals make it easier to protect your machine’s performance while lowering the overall cost of ownership.

The easy-to-read 4.3-inch LCD screen displays critical machine information and warnings to improve overall productivity.

Keyless start with password protection helps you avoid lost time due to missing keys. Keyed option available.

For jump-starts or charging a low battery, the accessible battery terminals save time and effort to get your loader up and running.

The dual-element, high-capacity filter with a visual indicator delivers clean airflow to your engine and excellent contaminant-holding capacity for an extended life and maximum component protection.

A dependable serpentine accessory drive belt requires no tensioning and no maintenance.

Quickly gain access to machine components with the easy-to-remove covers.

The L35 features convenient tie-downs for trailering.

Wear pads that support lift-arm extension are easy to adjust and made of durable, self-lubricating material for long wear life and greaseless workgroup extension.

Do more than dig with the Bobcat L35. Your small articulated loader can complete a long list of jobs that include trenching, digging, carrying materials, clearing snow and sweeping. Equip your machine with more than 50 available Bobcat attachments. Purchase small articulated loader attachments for everyday use and rent others for special projects or one-time tasks.

With the Power Bob-Tach system, you can change non-hydraulic attachments without leaving the comfort of your cab. Just line up the attachment and press/hold the switch and the Power Bob-Tach system will secure the attachment to the machine.

The L35 is available with the optional 7-pin control harness for greater versatility and control with select attachments. A 14-pin adapter is also available.

A rear electric power supply enables easy hook up and control of rear attachments, such as the spreader.
