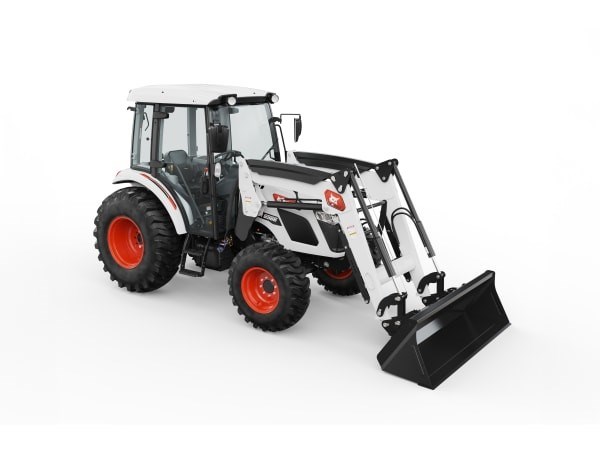

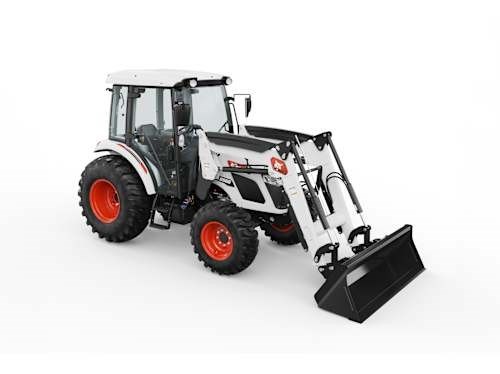

Bobcat UT6566 - Utility Tractor

A hard-working tractor needs hard-working traction. With the push of a button, you can engage four-wheel drive whenever the work demands it.

With higher travel speeds, you’ll spend less time moving from one point to another, and you’ll make every second count when you have work to get done.

Forward Travel Speeds

• UT6066 - 19.8 mph
• UT6566 - 19.8 mph
• UT6573 - 19.9 mph

The 12x12 powershuttle transmission gives you three ranges, each with four powerful and efficient gears in both forward and reverse. Your electronic hand clutch smoothly and easily shifts from gear to gear, giving you high torque or faster travel speeds on command. Simply stop the tractor to switch the range.

Direction changes are simple with the powershuttle transmission. There’s no clutching required to switch from forward to reverse or back. This makes for efficient, intuitive front-end loader work. While traveling, pull the shuttle lever toward you to gradually slow down the tractor and switch to reverse.

The turbocharged, Tier 4 diesel engine offers robust, high-power performance, plus an efficient fuel system. You’ll enjoy reliable tractor start-ups and long component life, as well as low noise and vibration for comfortable work. With a turbocharged engine, you get consistently high performance and impressive low-end torque that won’t let up during the tough jobs or in higher altitudes.

The single-lever loader control joystick is within easy reach, for loader operations or front-end attachments. It's convenient location allows you to focus on loader operations, without having to scan the operator station for the control.

The mechanical self-leveling front-end loader is a must-have for digging, dirt moving, loading, and carrying material. The front-end loader automatically keeps your load level throughout the full range of motion. It keeps pallet forks level and minimizes bucket spillage when raising and lowering the loader for efficient performance.

With the Bob-Tach mounting system, it is easy to attach and remove. With just a quick change, you can gear up for more tasks, bringing more value and versatility to your utility tractor.

The 3-point hitch is a key to your tractor’s versatility. It enables you to do a large number of tasks on your property with both non-powered and PTO-powered implements. The telescopic lower links and stabilizers create an optimum connection and make it easy to hook up and remove implements at needed.

Bobcat utility tractors feature a standard PTO that can be operated in two modes: 540 rpm and 540E. 540 is used in first gear, achieving 540 rpm at a 2500-rpm engine speed for maximum power. 540E is used in second gear and generates 540 rpm with the engine running at 1800 rpm, using less fuel as you work.

Draft control helps maintain the desired height of implements, such as the angle blade, as you work through hard ground. Hydraulic draft control senses the extra strain on the 3-point hitch and raises the implement just enough to get through the hard spots, then quickly returns to the desired depth.

With little effort and time, you can adjust the level of 3-point implements using the crank-style lift rod. The crank-style lift rod adjust your links (on the right-hand side) up and down for optimum implement engagement and leveling.

Easily raise and lower the 3-point links using the 3-point height lever conveniently located on the back of the tractor. Operators also have this functionality from the operator station.

One person can quickly change implements – with minimal effort – with telescoping lower links and sway bars. The telescopic lower links and stabilizers support easy implement hook-up without the need for tools.

Secure and remove sway bar pins with ease to save time and effort with every implement change.

Bobcat utility tractors come standard with one pair of rear remote hydraulics for added implement versatility. A second and third valve are optional.

Engage the rear PTO with the push and turn of a button.

By enabling auto PTO, the PTO will automatically disengage when the 3-point hitch is raised to a specific height.

If the fuel filter is plugged or reaching the end of its service life, or if there's an issue with the low-pressure fuel system, a display indicator lets the operator know. You and your staff can be more aware of service needs to protect equipment uptime.

Customize your clutching to your specific preferences or job requirements. Turn the engagement control up to activate the clutch pedal earlier as you depress the pedal. Turn the control down to achieve a slower clutch engagement as you depress the pedal.

The lower lift arms feature an angled design that supports easy implement connections.

The 3-point hitch is equipped with two hydraulic lift cylinders that maximize lift capacity for implement operation.

Rear wheel weights optimize the performance of your front-end loader. An aftermarket, front-weight kit also is available to optimize implement operations.

The powerful, common rail diesel engine delivers robust, high-power performance with an efficient fuel system. You’ll enjoy reliable tractor startups and long component life, as well as low noise and vibration for comfortable work.

• UT6066 - 66hp
• UT6566 - 66hp
• UT6573 - 73hp

Enables you to prevent engine stall during high-load operations.

PTO cruise allows you to maintain rpm at your preferred setting – even as the tractor’s load conditions change.

Included with the loader and also available separately, the heavy-duty brush guard protects your tractor’s front end from debris, branches and other obstacles.

Auto PTO shuts off automatically when the 3-point hitch is raised to a specific height.

The operator station on Bobcat utility tractors support hours of comfortable, confident work. All the controls, gauges and buttons on Bobcat utility tractors are thoughtfully laid out with operator ease of use in mind. The illuminated dashboard allows you to operate and easily monitor performance – even when natural light levels are low. The operator station provides simplicity and ease of use for operators who frequently get on and off the tractor throughout the day.

Surround yourself in comfort features that shield you from the elements and make easy work of even the toughest jobs. Choose a model with a full, radio-ready cab and get the ultimate in utility tractor comfort. All the controls, gauges and buttons on Bobcat utility tractors are thoughtfully laid out with operator ease of use in mind. The illuminated dashboard allows you to operate and easily monitor performance – even when natural light levels are low. The heating and air conditioning system provides year-round comfort no matter the weather conditions.

The rubber mat dampens vibrations through the floor to give you a more comfortable day’s work.

Power steering delivers easy maneuverability, and the tilt function enables any operator to adjust to the position that feels most comfortable.

When you sit in the tractor’s cab, you’ll quickly appreciate the panoramic visibility – made possible with wide glass panels and minimal obstruction. A window to the 3-point hitch ensures that you can monitor implement operations and work performance without having to frequently step out of the cab.

When cold or wet weather hits, quickly clear your view with a defrost system that comes standard with cab-equipped Bobcat tractors.

A fully adjustable seat accommodates every operator, and it includes a foldable armrest (cabbed machines only) on the right-hand side for extra comfort and support when you need it.

The ROPS is designed to help protect the operator in the event of a rollover (when the seatbelt is fastened).

Bright LED headlights illuminate the job for evening work and other low-light conditions. Additional LED work lights on the front and rear provide extra illumination and visibility to the work at hand.

The LED trail lamp provides excellent visibility and long service life.

There are no side panels to remove when you need to access your engine. Just fold down the brush guard, then lift the hood. With the lift assist of gas springs, it takes little effort. When fully opened, the tractor’s hood stands nearly perpendicular to the engine compartment. This provides optimal maintenance accessibility and makes major service points easy to reach.

Greasing locations make routine maintenance easier to complete, which helps to ensure years of reliable performance. Engine oil drain, fill and checks are easy to reach, and the filter can be quickly replaced. Hydraulic oil fill, fuel fill, fuel filter, battery and axle fills are all within easy reach as well.

Your utility tractor packs a lot of versatility for the price, and hard-working Bobcat implements and attachments are made to handle the many possibilities you uncover on your land. Bobcat provides you access to a world of Bobcat implements and front-end loader attachments – so you can get the most work from your tractor investment. Whether it’s moving snow, handling materials or taking care of animals, when you have the right tractor and the right implement or attachment, there is virtually no task that’s beyond your ability.

• 77-inch split top grapple
• Utility forks with grapple
• Rock bucket
• Snow blade
• Tine rake
• Angle blade

Rear remote hydraulics allow you to gain even more versatility by enabling hydraulic functions for many implements. Bobcat utility tractors come standard with one rear remote hydraulic valve, with the option to add a second valve in cabless tractors and third valve in tractors with a cab.

The FL10 front-end loader is a must-have for digging, dirt moving, loading and carrying material. The Bobcat front-end loader is easy to attach and is equipped with quick disconnect and free-standing capability when removed. It delivers leading lift capacity and height for exceptional productivity. The integrated loader control valve enables easy hydraulic hookups.
