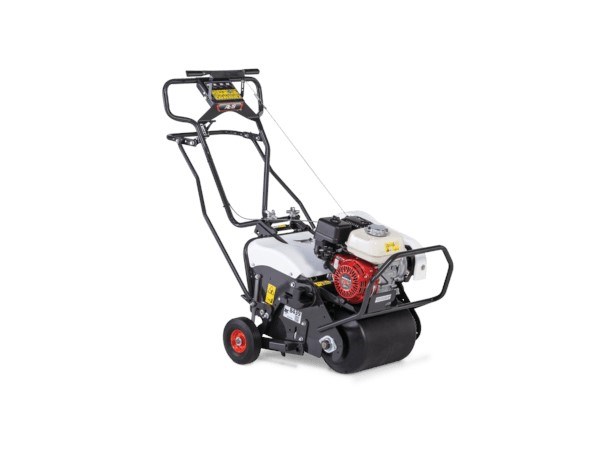

The AE19 is the smallest aerator in the Bobcat turf renovation lineup, making it a great machine for highly landscaped areas.
With Easy-Steer technology, the Bobcat® AE19 maneuvers around highly landscaped areas quickly and efficiently. Designed to rotate independently while driving, the innovative tine assemblies allow the AE19 to be steered without removing the tines from the ground – opening a whole new world of productivity.
AE19 Key Specifications | |
---|---|
Engine Model | Honda GX120 |
Engine Displacement | 7.2 in³ |
Width | 28 in |
Aeration Width | 19 in |
Maximum Aeration Depth | 2.8 in |
Aeration Pattern | 3.75 in x 7 in (95 mm x 178 mm) |
Drive System | 4L section V-Belt to jackshaft; #40 nickel-plated chain to tines & drum |
Engine | |
Horsepower | 3.2 hp |
Fuel Capacity | 0.53 gal |
Performance | |
Maximum Productivity | 2692 m²/h |
Weight | 260 lb |
Weight: Water in Drum | 296 lb |
Dimensions | |
Length | 53.5 in |
Height | 48.8 in |
Frame | Welded 7-gauge steel; 11-gauge steel tubing |
Wheels | |
Front Tire(s) | (1) 11 in water-fillable drum |
Rear Tire(s) | (2) 8 in x 2.25 in semi-pneumatic transport wheels |
Aeration | |
Tine Type | 0.75 in (19 mm) formed from 0.08 in (2 mm) hardened chrome molybdenum alloy steel |
Tine Engagement | Transport lift lever |
Drive | |
Clutch | Belt tightener |
Gearbox | 6:1 reduction |
Max Aeration Speed | 3.5 mph |
Max Travel Speed | 3.6 mph |
