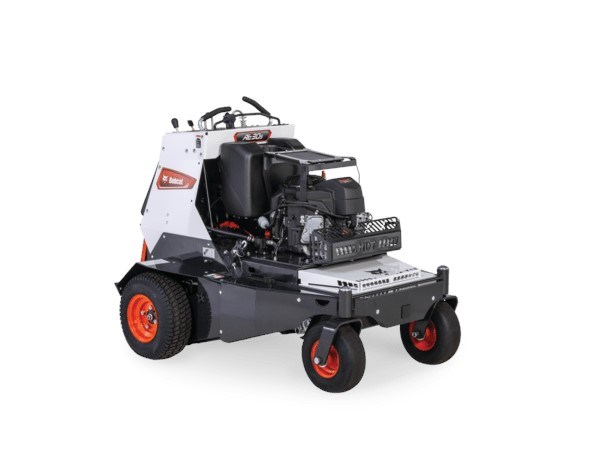

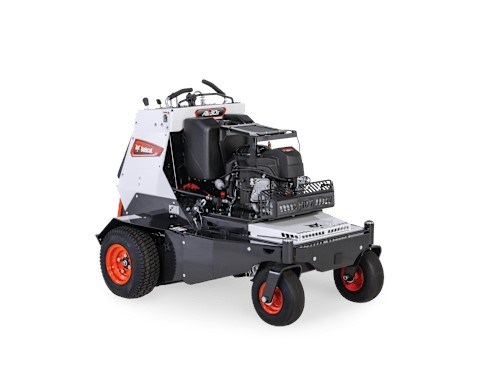

AE30S
AE30S AE30S AE30S AE30S AE30S

AE30S

Swift and efficient, the Bobcat® AE30S aerator is capable of covering two-and-a-quarter acres per hour at ground speeds up to 7 mph.

  • 30 in. working width
  • 48 hardened alloy steel coring tines
  • Stand-on anti-vibration operator platform
  • All operating controls are located at the handlebar for convenient and easy operation
  • Patented depth stops ensure consistent and accurate results
  • Get a Quote Payment Calculator

    • Get information on the AE30S

    Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.

    Loan Calculator

    Use the Loan Calculator to help you determine the financing and payment options that are best for you.

    Amount Financed ($)
    Interest Rate (%)
    Loan Term in Months
    Monthly Payment Calculated

    **The accuracy of this calculator and its applicability to your circumstances is not guaranteed. You should obtain personal advice from qualified professionals. This information is provided for illustrative purposes only and does not constitute an application. This notice does not guarantee loan approval, nor is it an offer or commitment to make a loan to you on the above terms.

  • View Product Brochure
AE30S Overview

Aeration season doesn’t last forever, that’s why you need a swift, efficient machine that saves you time while increasing your productivity. The Bobcat AE30S does just that, capable of covering two-and-a-quarter acres per hour at ground speeds up to 7 mph. Its innovative features and controls also give you the power and speed to take on the biggest jobs. It’s packed with features including an anti-vibration operator platform that can be flipped up for walk-behind applications, patented depths that create a hard limit for tine penetration, a patented cooling system that provides optimal engine temperature, and a patented chain tensioner system that automatically keeps the chains properly tightened.

AE30S Specs & Compare
Download PDF
AE30S Key Specifications
Engine ModelKawasaki FS541V
Displacement36.8 cubic in
Width47.2 in
Aeration Width30 in
Maximum Aeration Depth5 in
Number of Tines48
Aeration Pattern3.75 in x 8 in (95 mm x 203 mm)
Drive SystemBelt from engine to hydrostat input shafts; hydrostatic drive to jackshaft via auto-tensioned #50 chain; jackshaft to wheels and tines via (2) #50 chains
TransmissionHydro-Gear ZT-3200 transaxles; hydraulic cooling system
Engine
Fuel Capacity5 gal
Horsepower15 hp
Performance
Weight1235 lbs
Maximum Productivity97800 (sq ft/hr)
Dimensions
Length: Platform Down69.5 in
Length60.5 in
Height48 in
Aeration
Tine EngagementThumb-operated tine lift switch
Max Tine Pressure700 lbs.
Depth AdjustmentHydraulic pressure control and (2) depth stop pins on either side of machine in 0.5" increments
Tine Type0.75 in (19 mm) formed from 0.08 in (2 mm) hardened chrome molybdenum alloy steel
Drive
Hydraulic Oil Capacity7 qt
Max Forward Speed7.4 mph
Max Reverse Speed3.1 mph
FrameWelded 7-gauge steel; 0.25 in wall steel tubing
Wheels
Front Tire(s)(2) 13 in x 5 in - 6 in smooth-tread pneumatic caster wheels
Rear Tire(s)(2) 18 in x 6.5 in - 8 in turf-tread pneumatic drive wheels
AE30S Features & Benefits

High-Productivity Aeration

The AE30S can aerate 30 inches per pass at 7.4 miles per hour. That’s more than 2 acres per hour in potential productivity.

48 Coring Tines

Achieve exceptional turf health with 48 coring tines that penetrate as deep as 5 inches, allowing nutrients and water to reach deep into the roots.

Built-In Tire Scrapers

Maintain high performance and optimal traction with built-in tire scrapers that clean tires while you work.

15 hp Kawasaki Engine

With 15 horsepower and the renowned performance of Kawasaki engines, you’ll have commanding force to conquer any challenge.

Patented Hydraulic Cooling System

Stay cool when the pressure is on. The patented hydraulic cooling system maintains optimal engine temperature for uninterrupted productivity.

Patented Automatic Chain Tensioner

Reduce the need to check chain tension. The AE30S features an automatic chain-tightening system for proper tension, better sprocket life and less overall maintenance.

Rugged Design

Bobcat aerators are built to withstand the harsh conditions you work in. The rugged design of Bobcat aerators ensures you can do your best work for years to come.

Convenient Operator Platform

The operator platform provides for smooth and comfortable operation, plus impressive visibility to complete the job with less fatigue and strain.

All Operating Controls at the Handlebar

All controls are conveniently located at the handlebar for convenient operation.

Fingertip Tine Switch and Pressure Dial

Get precise control with minimal effort. The fingertip tine control easily lifts and lowers the tines while the pressure dial sets the downward tine force.

Operator Pad and Anti-Vibration Platform

Experience smooth and comfortable operation, even when you're putting in extra hours on the job. The AE30S is cushioned for comfort with a durable pad that supports standing operators. The AE30S also features a shock-absorbing platform that minimizes ground feedback.

Narrow Profile

The AE30S can pass through gates and other access points of just 48-inches wide for easy jobsite access.

Zero-Turn Travel (Tines Up)

With the tines up, you can employ zero-turn mobility to easily navigate tight spaces and obstacles.

Patented Depth Stops

The patented depth stops limit tine penetration for accurate and consistent results.

Easy Maintenance

The operator pad and maintenance-point covers can be easily removed without tools for quick and convenient access. The AE30S also features integrated jack stands for easy access under the aerator.

Seed Spreader

Once you've completed your aeration task with the AE30S, cover the ground again to overseed with the optional seed spreader. With both aeration and overseeding capabilities, the AE30S is ideal for establishing thick, healthy turf.

Light Kit

Expand your working hours with the AE30S light kit, and tackle your aeration needs after dark or during dim, early-morning hours.
