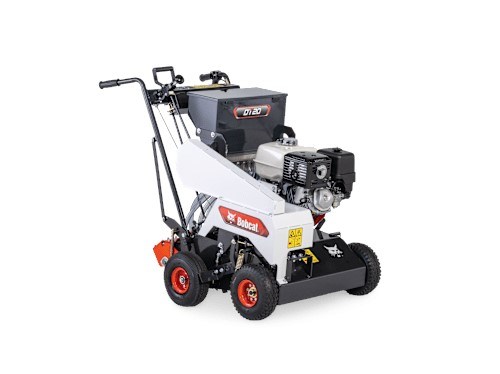

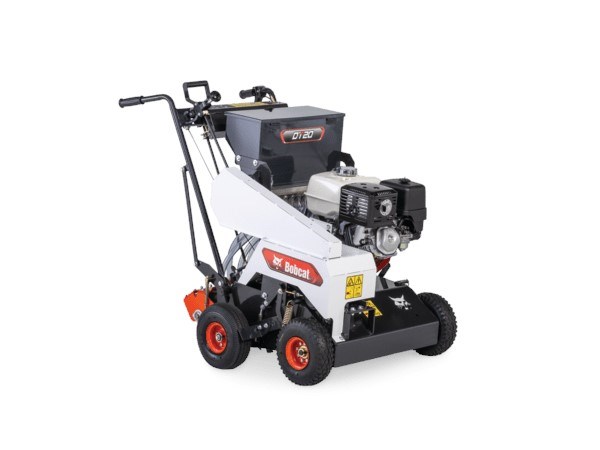

Heavy-duty and built to perform, the Bobcat® DT20 places seeds directly into soil slits for fast germination and unmatched seed-to-soil contact, aeration, and overseeding.
DT20 Key Specifications | |
---|---|
Engine Model | Honda GX390 |
Engine Displacement | 23.7 in³ |
Width | 35.5 in |
Seeding System | Seed is dropped directly into soil slits via seed delivery tube and covered in soil by disc system |
Seed Hopper Capacity | 40 lb |
Included Blade Reel | Seeding Blade |
Operating Width | 19 in |
Max Reel Speed | 3,200 rpm |
Drive System | 4L-section V-belt to front wheels by gear box and sealed roller chain; triple 3V-section V-belts engine to reel |
Engine | |
Horsepower | 11.7 hp |
Fuel Capacity | 1.6 gal |
Dimensions | |
Length | 50 in |
Height | 44 in |
Frame | Welded 7-gauge steel |
Wheels | |
Front Tire(s) | (2) 4.10/3.50 - 4 turf-tread pneumatic drive wheels |
Rear Tire(s) | (2) 4.10/3.50 - 4 sawtooth-tread pneumatic |
Seeding | |
Reel | |
Depth Adjustment | Microscrew adjustment; adjustable up to 1.25 in (32 mm) for blade wear |
Max Seeding Blade Depth | 0.2 in |
Max Fixed Blade Depth | 0.2 in |
Seeding Blade Type | (10) 8 point, high carbon, heat treated blades, 2 in (51 mm) spacing |
Flail Blade Type | 1/8 in (3 mm) hardened, high-carbon steel blades at 1 in (25 mm) spacing |
Fixed Blade Type | Hardened, high-carbon steel blades:1/32 in (1 mm) at 1/2 in (13 mm) spacing1/32 in (1 mm) at 1 in ( 25 mm) spacing1/16 in (2 mm) at 1 in (25 mm) spacing 1/16 in (2 mm) at 1 1/2 in (38 mm) spacing |
Drive | |
Clutch | Spring loaded belt tightener |
Gearbox | 22:1 reduction |
Max Rec Operating Speed | 2.4 mph |
