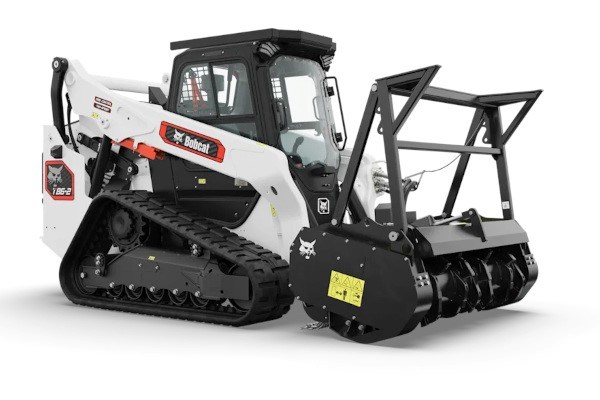

The Bobcat® Pro T86-2 compact track loader is built for the most demanding environments like forestry, road construction, demolition and more. It combines maximum lift height, powerful hydraulics, premium cooling performance and advanced control, delivering strength and precision in a compact machine.


Special Offers
As low as 0% for 48 months* or rebates up to $9,000 USD*/$12,200 CAD* in lieu of financing offer. Offers end September 30, 2026.

$120,586

Starting at USD**

115 hp

Horsepower

3925 lbs

ROC Solid Undercarriage

60

Available Attachments

  • Get a Quote Payment Calculator

    • Get information on the T86-2

    Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.

    Loan Calculator

    Use the Loan Calculator to help you determine the financing and payment options that are best for you.

    Amount Financed ($)
    Interest Rate (%)
    Loan Term in Months
    Monthly Payment Calculated

    **The accuracy of this calculator and its applicability to your circumstances is not guaranteed. You should obtain personal advice from qualified professionals. This information is provided for illustrative purposes only and does not constitute an application. This notice does not guarantee loan approval, nor is it an offer or commitment to make a loan to you on the above terms.

T86-2 Specs & Compare
Download PDF
T64-2 Key SpecificationsT86-2
Horsepower115 hp
ROC Solid Undercarriage3925 lbs
Operating Weight12104 lbs
Travel Speed - Low (2-Speed)5.5 mph
Travel Speed - High (2-Speed)10.7 mph
Auxiliary Std Flow23 gpm
Auxiliary High Flow36.6 gpm
Aux System Pressure3500 psi
Aux System Pressure (Super)4061 psi
Auxiliary Super Flow42 gpm
Length without Attachment120.4 in
Overall Width78 in
Overall Height83.1 in
Height to Hinge Pin144 in
Reach @ Maximum Height34.5 in
ENGINE
Horsepower115 hp
Battery Size1000A CC
Engine-High Idle2600
Engine-Low Idle1050
Pre-HeatYes
PERFORMANCE
Rated Operating Capacity 200 lb. Counterweight4075 lbs
Rated Operating Capacity with Torsion3700 lbs
Rated Operating Capacity 400 lb. Counterweight4225 lbs
ROC Solid Undercarriage3925 lbs
Rated Operating Capacity 300 lb. Counterweight4150 lbs
Tipping Load11214 lbs
Operating Weight12104 lbs
Travel Speed - Low (2-Speed)5.5 mph
Travel Speed - High (2-Speed)10.7 mph
Ground Pressure (Rubber)4.6 psi
CAPACITIES
Fuel Tank31.6 gal
HYDRAULIC SYSTEM
Hydraulic High Flow (optional)36.6 gpm
System Relief @ Quick Couplers3500 psi
Auxiliary Std Flow23 gpm
Auxiliary High Flow36.6 gpm
Aux System Pressure3500 psi
Aux System Pressure (Super)4061 psi
Auxiliary Super Flow42 gpm
DIMENSION
Ground Pressure (Standard Tracks)4.6 psi
Length with Standard Bucket148.9 in
Length without Attachment120.4 in
Overall Width78 in
Overall Height83.1 in
Height to Hinge Pin144 in
Reach @ Maximum Height34.5 in
Turning Radius85.1 in
Length of track on ground66.3 in
Track Width17.7 in
Track Width - Optional17.7 in
FEATURES
Joystick ControlStandard
Air ConditioningStandard
5-Link Torsion Suspension UndercarriageOptional
Standard Display (includes keyless start)Standard
Dual-Direction Bucket PositioningStandard
Heated Cloth Air-Ride SeatStandard
Speed ManagementStandard
Reversing FanOptional
Radio Remote Control (SJC Required)Optional
Pressure Release Hydraulic Quick CouplersStandard
LED Front and Rear LightsStandard
Backup AlarmStandard
BICS System (Interlock)Standard
ROPS/FOPS ApprovedStandard
ROPS-StepN/A
Sound OptionStandard
Heater Air ConditioningStandard
RadioOptional
Turbocharged EngineStandard
Grab HandlesN/A
Suspension SeatNot Applicable
Two Speed TravelStandard
Lockable IgnitionN/A
Auxiliary HydraulicsStandard
3-Spool ValveN/A
Grease Track TensionOptional
Bob-Tach Attachment SystemStandard
Power Bob-TachStandard
Ride ControlOptional
HornStandard
T86-2 Features & Benefits

Integrated In-Machine Cooling System

Industry-leading integrated in-machine cooling helps maintain peak performance during long workdays, even under load. It's built to support consistent output without overheating when the pace of work stays high.

Precision Drive Software

Selectable Joystick Controls (SJC) with precision drive software deliver smooth motion and faster response for more precise operation.

Four Drive Modes

Balanced, Agile, Dynamic and Charged drive modes let operators tailor machine drive response to their working style and the task at hand.

Super-Flow Hydraulics

Only the T86-2 compact track loader and S86-2 skid-steer loader offer three hydraulic flow options – standard, high and super flow – setting a new standard for performance with up to 42 gallons per minute to run demanding attachments.

Redesigned Electrical System

A redesigned electrical system helps improve reliability in wet and dusty conditions with upgraded sealing, optimized routing and better-protected components.

Jobsite Companion

Available in the Advanced package, Jobsite Companion adds voice-activated machine functions, automated attachment settings and real-time job insights.

Bobcat Sense Detection Systems

Select either Rear Object Detection & Avoidance to detect objects behind the machine or 360 People Detection to detect people within a 360-degree field of view.

Bobcat View Camera Systems

Standard rear or optional broad‑area camera systems provide additional views when backing up, working in tight spaces and operating near obstacles.
